Interfacing ANSYS and LS-DYNA

Sample Problem #6: Rigid Mass Falling on a plate supported by Beams

Processing

Run the Model (Note: you can also run the model at LS-DYNA program but in this case when you create *.k file, specify that you will use LS-DYNA only)

Open LS-Dyna

Solver

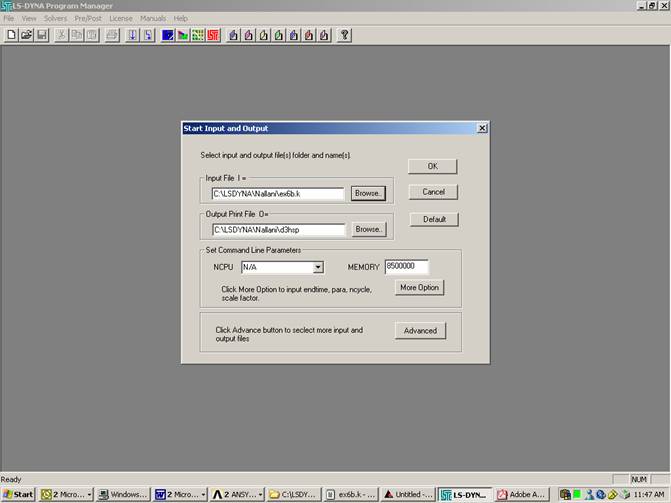

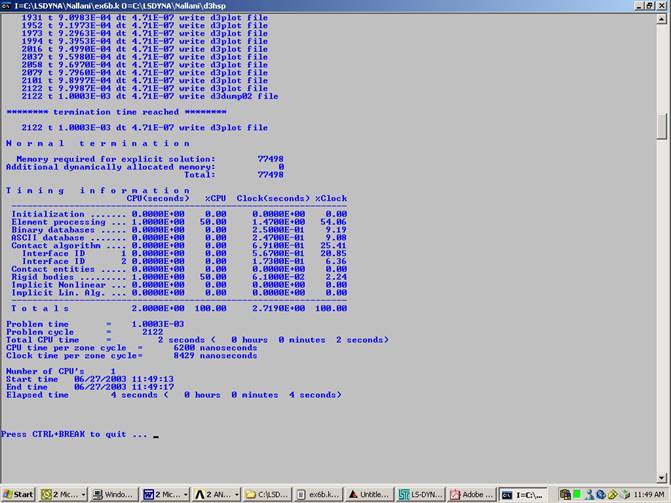

Start LS-Dyna Analysis
