Interfacing ANSYS and LS-DYNA

Sample Problem #4: Rigid Cylindrical Bar Moving Along the Z-Axis and Impacting a Plate in the X-Y Plane that is Supported by Other Plates Normal to It

Post-Processing

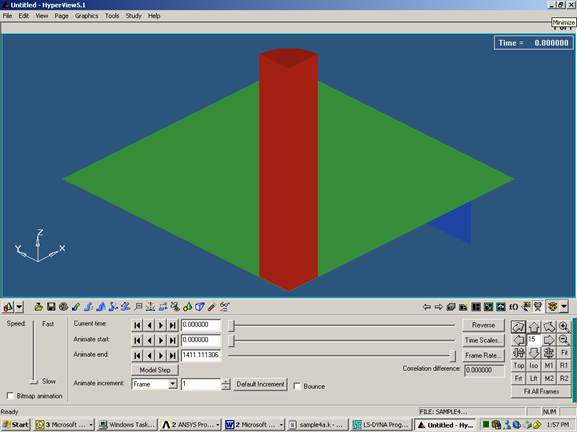

Use HYPER VIEW as a Post-Processor (Note: you can also use LS_DYNA post-processor)

Click Apply

Click on the traffic light to start animating the results

Click on animation control

Change speed to slowest possible speed

Click on Contour. Select stress (von Mises)

Click on contour

Select Displacement
