Interfacing ANSYS and LS-DYNA

Sample Problem #1: Cylindrical Bar Impacting a Rigid Wall

Post-Processing

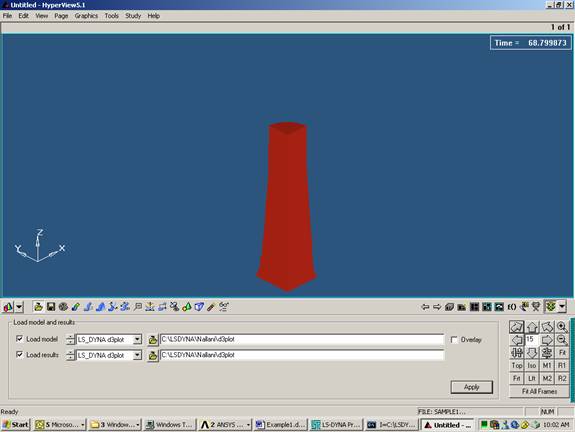

Use HYPER VIEW as a Post-Processor

Click Apply

Click on the traffic light to start animating the results

Click on animation control

Change speed to slowest possible speed

Click on contour

Select Displacement
