MEG 440

Fall 2000

Project #2

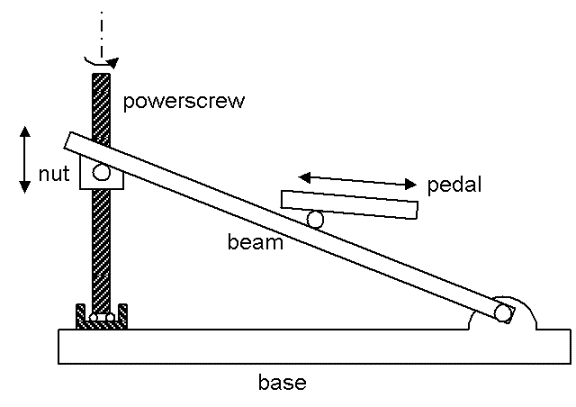

The sketch below details a mechanism for changing the stroke of an elliptic stair climbing exercise machine. The mechanism has the following components: base, powerscrew and nut, beam. Assume that loads are static (use the worst-case scenario). You are to choose materials and dimensions such that the mechanism will not fail due to any possible combinations of stresses.
