MEG 320 |
|
Spring 2006 |
|
Project 2 |
|

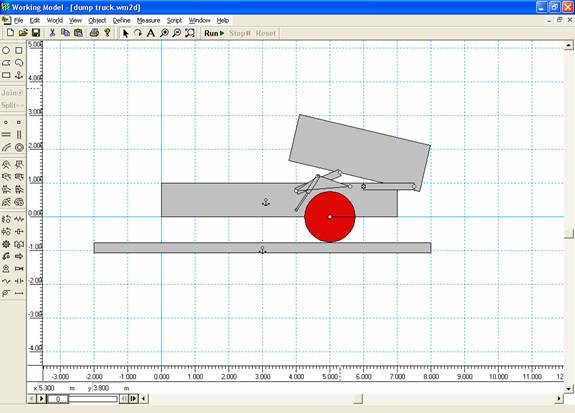

The figure below shows a typical mechanism
for a dumping truck. The hydraulic cylinder provides the input force. The
project include the following steps: i. Derive the displacement equations for the machine. ii. Derive the displacement equation for the critical points in the machine. iii. Write a computer program to simulate the displacement of the machine. iv. Compare the results with those obtained from Working Model |
|
|
