MEG 320
Spring 2003
Project 2
The information below describes an exercise machine (Compound Row). Use the dimensions that you have reached in Project 1 unless you did not end with an acceptable answer. In that case, finish your design before proceeding with this project. You are to analyze the displacement of this machine. The following are suggested steps: i. Derive the displacement equations for the two loops of the machine. ii. Derive the displacement equations for the critical points in the machine such as shoulder, elbow, etc. iii. Write a program, preferably in Mathcad, to simulate the displacement of the machine.

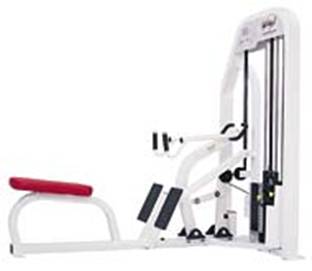

Compound Row (http://www.nautilus.com)
	The NITRO Compound Row accommodates multiple movement paths with divergent and convergent "Smart Arm" linkage providing user with direct upper torso workout. Rotating "Ergo Grip" handles for natural hand supination & pronation needs during movement Dependent "Smart Arm" movement arms offer varying movement patterns Four-bar linkage "Function Generator" accommodates radical strength curve Long seat pad and large foot platform accommodates various size users
